Can tiny defects be captured accurately? Will image delays affect the efficiency of high speed production lines? Is the storage of massive data expensive?

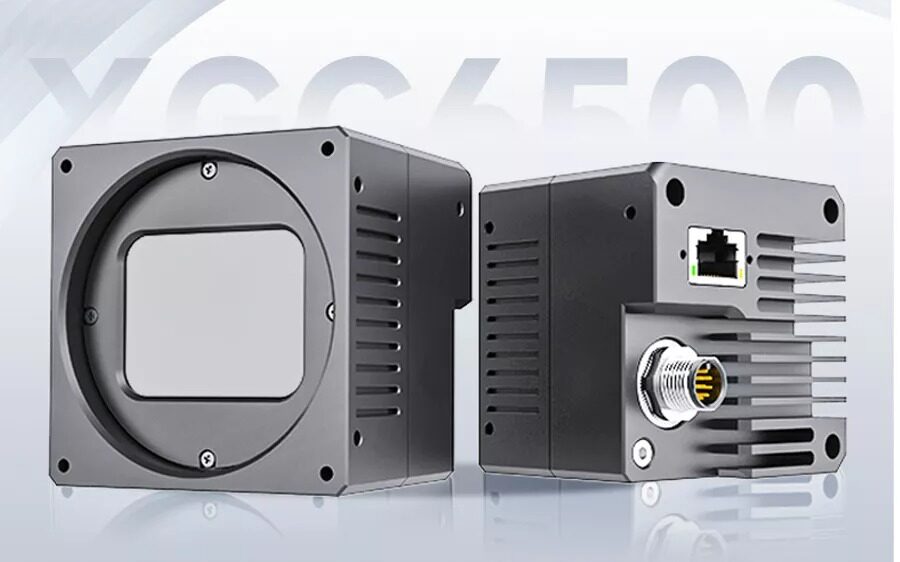

MindVison’s new 10G network industrial camera MV-XG6500GC/GM, with 65 million pixel ultra-clear image quality, 10G network ultra-fast transmission, and JPEG image compression technology, allows efficiency to break through the upper limit! !
01
Product Features
·65 million effective pixels, global shutter, 10G high-speed transmission
·The effective bandwidth is 1200MByte, which is 10 times that of Gigabit network, greatly shortening the image transmission time and delay
·Adopting standard 10G Ethernet interface design, Category 6A network cable can achieve stable communication
·Support JPEG image format, frame rate up to 31FPS

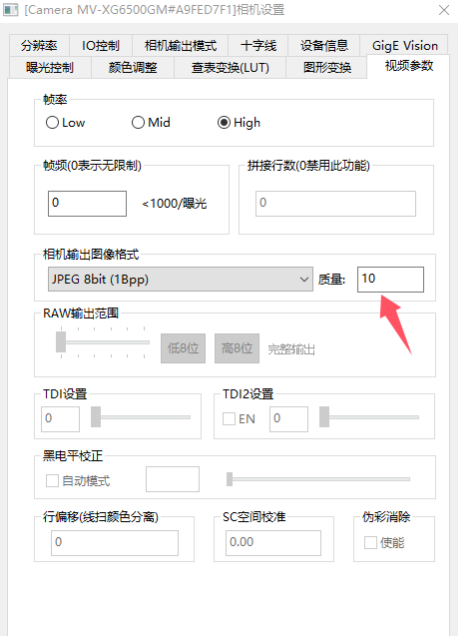

·JPEG image compression technology, greatly saving storage space

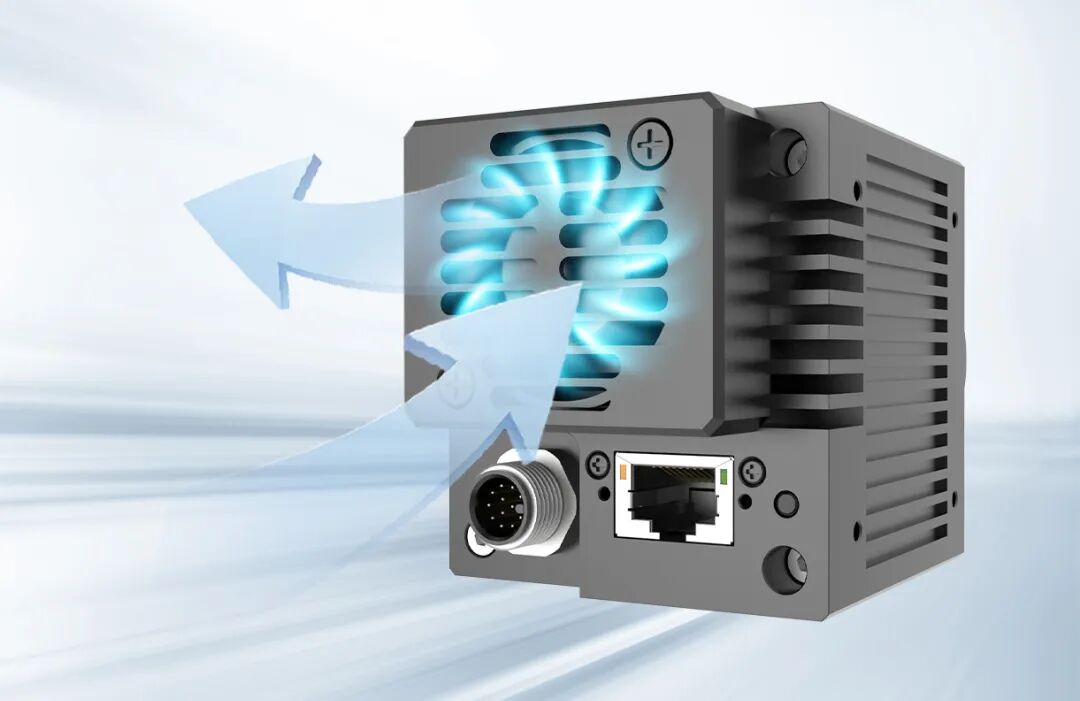

·Reserved fan interface to effectively control camera temperature
·The cost of the interface combined with the acquisition card is greatly reduced
02

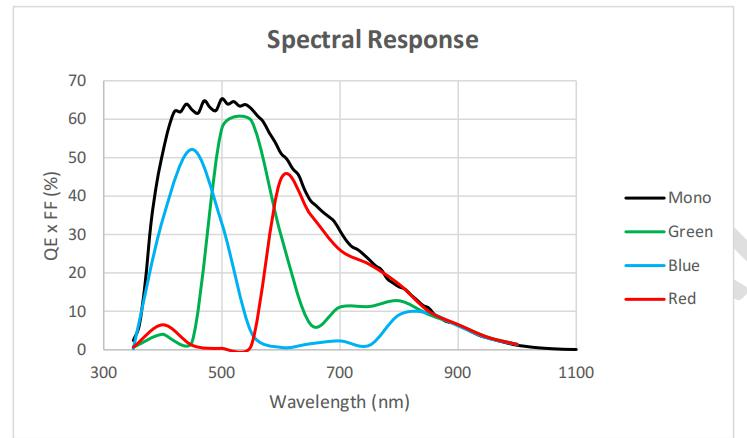

Spectrum
03
Product Parameters
|
|
MV-XG6500GC/GM |
|
|
Optics |
29.9mm×22.4mm |
|
|
Pixel size |
3.2um×3.2um |
|
|
Effective pixels |
65 million |
|
|
Resolution@Framerate |
9344×7000@15.5FPS RAW |
|
|
9344×7000@31FPS JPEG |
||
|
Sensitivity |
1.03×10^7e-/((W/m^2)·s) @500nm |
|
|
Output pixel width |
12bit |
|
|
Exposure method |
Global Shutter |
|
|
Exposure time range |
0.015ms~10000ms |
|
|
Signal-to-Noise Ratio |
40dB |
|
04
Application Cases

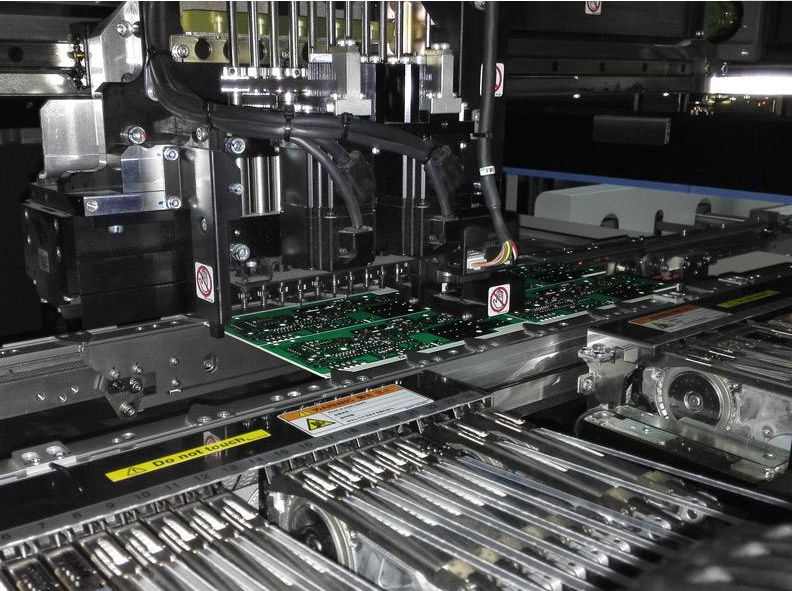

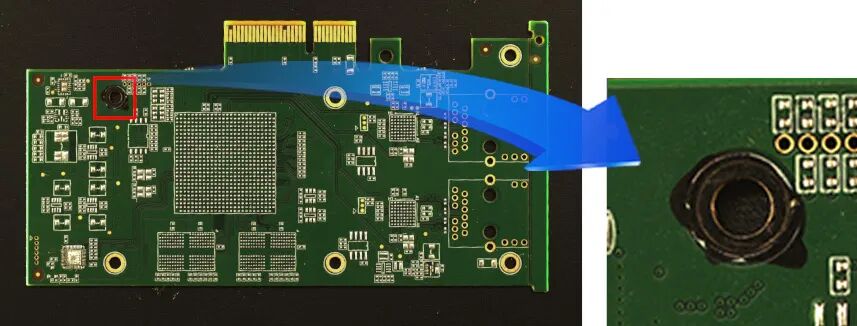

PCB Inspection
05
Application
PCB Inspection
Screen detection
Smart Transportation
Lithium battery detection
