In the field of industrial automation and machine vision, an efficient, stable and accurate image acquisition system is the core of intelligent manufacturing. The MV-SUS840C-M USB3.0 industrial camera launched by MindVision provides reliable solutions for high-speed inspection, precision measurement, automation control and other scenarios with its excellent transmission performance, strong compatibility and flexible expansion capability.01
Product Features
5Gbps transmission bandwidth, extremely fast transmission
Uses DMA transfer
Almost no CPU resources
5Gbps transmission bandwidth.
Combined with high speed sensor
8.4 million effective pixels
Frame rate up to 45.5FPS

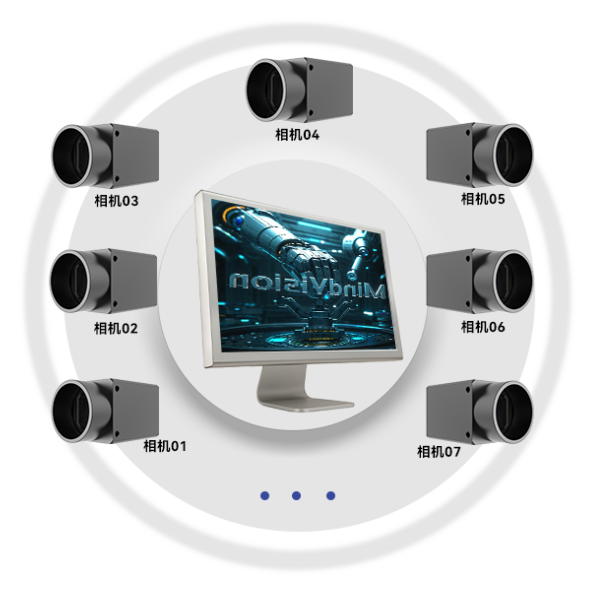

Supports multi-camera applications to multiply efficiency
Support one computer with multiple cameras working at the same time, working for a long time without dropping or losing frames.
Precise synchronization, hassle-free compatibility and seamless device collaboration
-

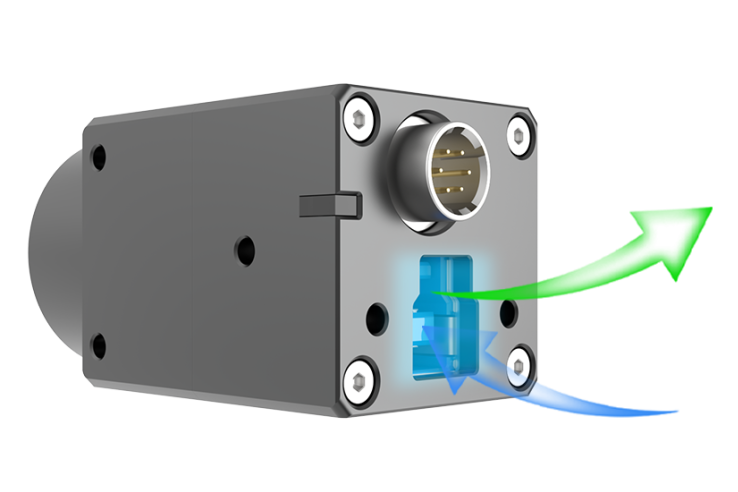

Camera comes with programmable I/O interface, support for external trigger flash synchronized photography
-
Supports 8bit and 12bit raw data output.
-
Fully compatible with the SDK of GIGE camera, can be replaced seamlessly.

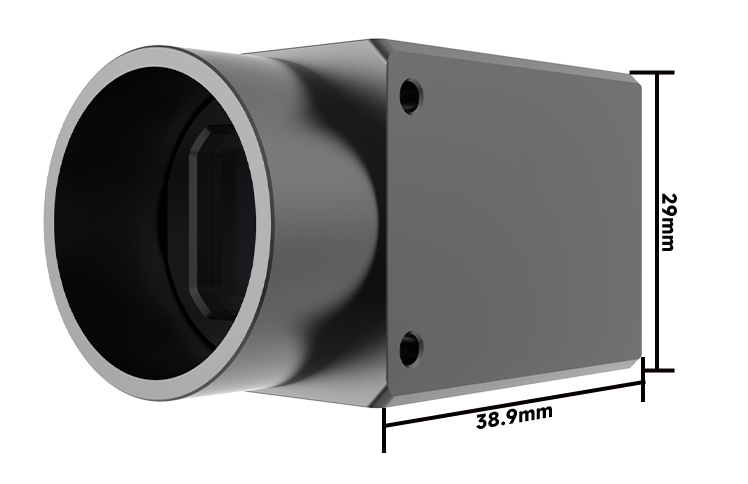

Compact size and higher integration MV-SUS840C-M body is compact, lightweight design, small size, the whole body control in 29 × 29 × 38.9mm, easy to install on all sides, easy to deploy and integrate, can be better adapted to all kinds of industrial machine environment.

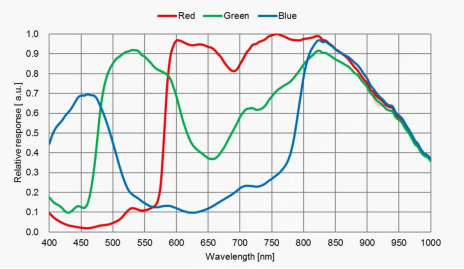

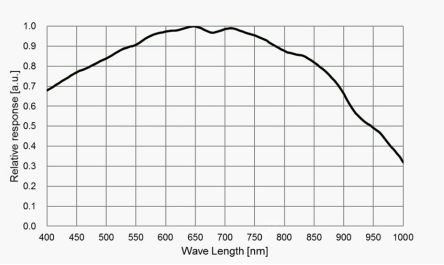

02 Spectrograms MV-SUS840C MV-SUS840M 03 Product Parameters
MV-SUS840C MV-SUS840M Sensors 1/1.8″CMOS Camera Type Color Mono Pixel Size 2um×2um Effective Pixels 8.4 million Resolution @ Frame Rate 3840×2160 @45.5FPS Sensitivity 2174(mV/lx/s) Exposure Time Ranges 0.0097ms~10139.6ms
Maximum Gain (Multiplier)
31 Data Interfaces USB3.0 Exposure Methods Rolling Shutter 04 Application Cases Fluorescence Analysis Precise capture of cell morphology, fluorescent labeling details, and effective capture of weak fluorescent signals 05 Areas of Application Electronic 3C Automated Semiconductors Intelligent Transportation Biomedical
