In the field of industrial inspection, are you often plagued by these problems?
Tiny defects are difficult to capture, high leakage rate?
High-speed production line dynamic detection fuzzy?
Severe environmental equipment frequent downtime, high maintenance costs?

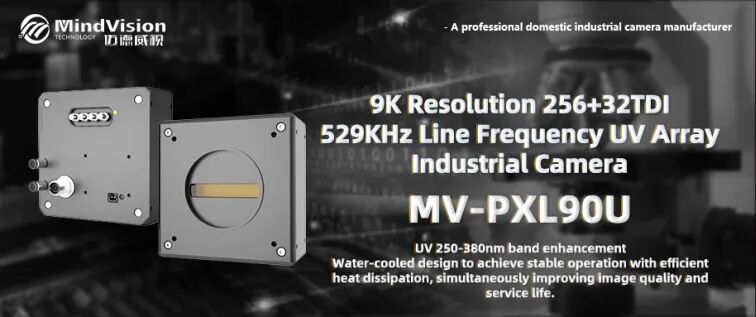

MindVision’s newly upgraded UV array industrial camera MV-PXL90U redefines the ultimate performance of industrial vision with 9K Ultra HD resolution, UV enhancement and water-cooled design, helping you to overcome inspection problems easily!
01
Product Features

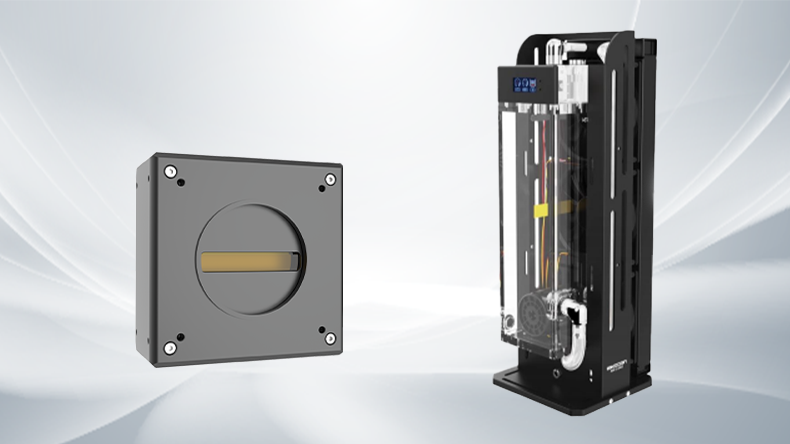

·Watercooled design to achieve stable operation with efficient heat dissipation, simultaneously improving image quality and service life.
·Low power consumption fanless design to ensure the stability of flying shooting.
·CXP12 interface, the maximum effective bandwidth of data transmission is 4850Mbyte, which is 4 times more than 10GbE and 12 times more than USB3.0.
·Excellent SDK design, users do not need to directly operate the CXP capture card, eliminating the tedious configuration process, as simple as using a Gigabit network industrial camera.
·Adopt HD-BNC to realize standardized industrial-grade cable connection.
02

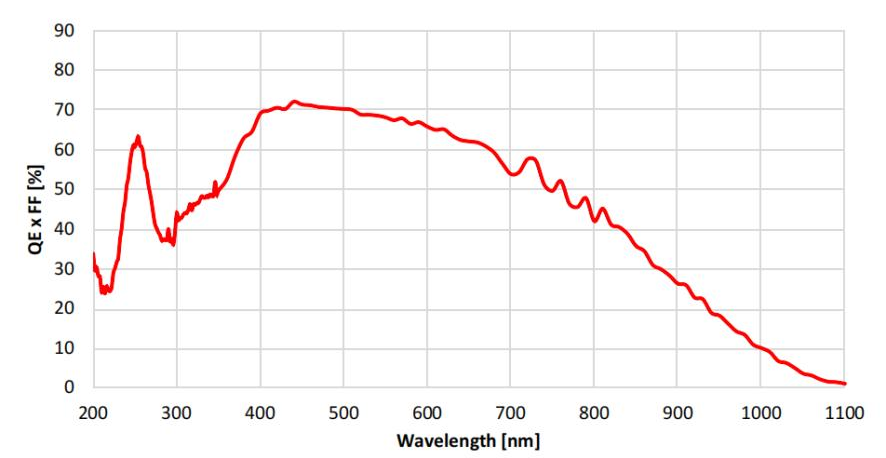

Spectrograms
–Ultraviolet 250-380 nm band enhancement–
03
Product Parameters
|
MV-PXL90U |
|
|
Optics: |
45.36×1.28mm |
|
Sensor Type: |
CMOS-TDI |
|
Camera Type: |
UV-enhanced |
|
Like Meta Size: |
5um×5um |
|
Effective Pixels: |
9072×(256+32) |
|
Dynamic Range: |
63.5dB |
|
Sensitivity: |
5.7×107 e -/ ( (W/m2 )·s)@550nm@12bit |
|
Max Line Frequency: |
529KHz |
|
Heat Dissipation Method: |
Water Cooling |
04
Application Cases

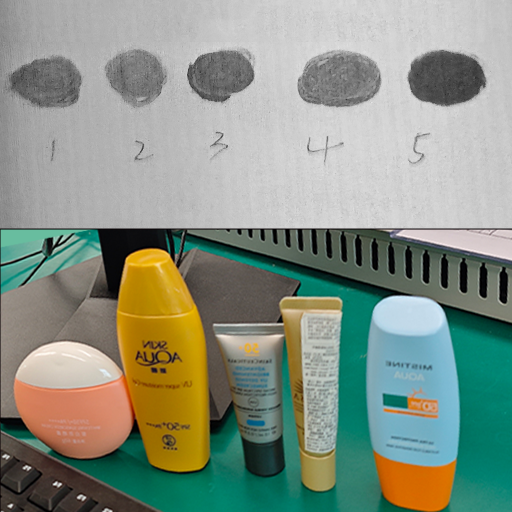

Test the effectiveness of sunscreen, the darker the color, the stronger the UV protection.
05
Product Applications

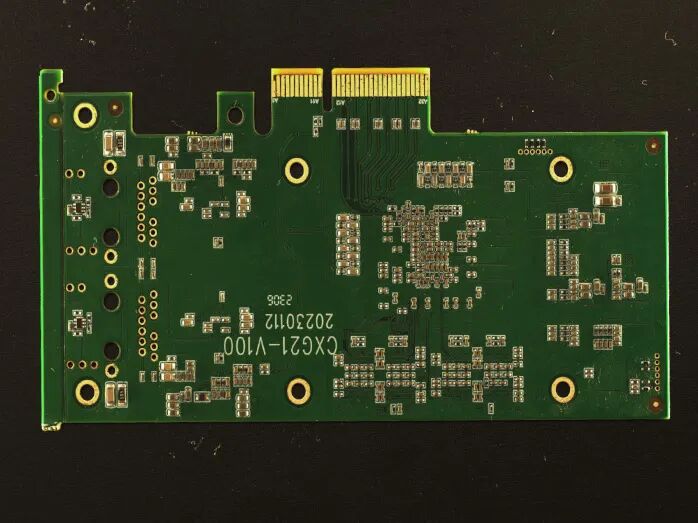

PCB Inspection
Biomedical
Glass Dirt Detection
Material Surface Inspection
