Special Camera

Home

Special Camera

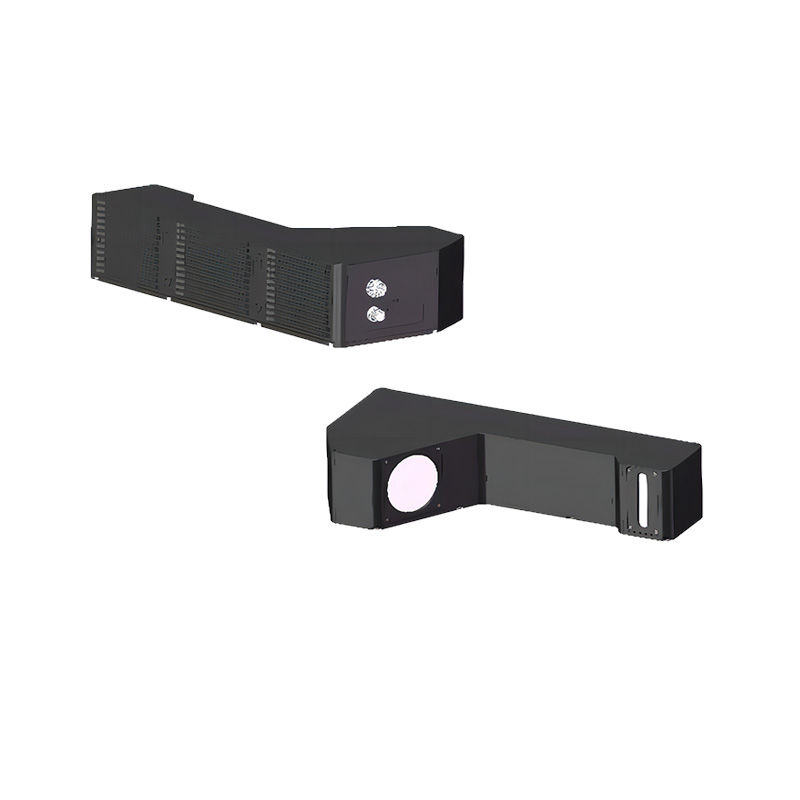

3D industrial cameras MV-3DL2048G-AB/AB1

Frame rate：1200FPS Data points：2048 Clear Distance：82mm Z-axis range：76mm FOV：58mm~89mm Working distance：112mm

3D industrial cameras MV-3DL2048G-BB/BR

Frame rate：2000FPS Data points：2048 Clear Distance：167mm Z-axis range：400mm FOV：173.7mm~470mm Working distance：283.9mm

3D industrial cameras MV-3DL2048G-CB

Frame rate：2000FPS Data points：2048 Clear Distance：60.7mm Z-axis range：379.7mm FOV：441.4mm~806.6mm Working distance：195mm

Industrial Far Infrared Thermal lmager Thermographic Cameras-Area Scan Cameras MV-GF120

Sensor size：6.8mm×5.1mm Pixel size：17um Pixels：12MP Resolution：400x300 50Hz Exposure time：0.0074~124727.5ms Sensor model：GST417M

Micro Industrial Camera Area Scan Cameras MV-GEM133GC/M

Sensor size：1/2.7" Pixel size：4um Pixels：1.3MP Resolution：1280X1024 Frame rate：91fps Exposure time：0.01~81.9ms Sensor model：CMOS Shutter：Global Color：Color/Mono

Micro Industrial Camera Area Scan Cameras MV-GEM232GC/M

Sensor size：1/2.6" Pixel size：3um Pixels：2.3MP Resolution：1920x1200 Frame rate：52fps Exposure time：C:0.014~786.4ms M:0.014~917.5ms Sensor model：CMOS Shutter：Global Color：Color/Mono

Short-wave Infrared Camera Area Scan Cameras MV-GEC130I

Sensor size：1/2" Pixel size：5um Pixels：1.3MP Resolution：1280×1024 Frame rate：72fps Exposure time：0.0130~7987.2ms Sensor model：IMX990 Shutter：Global

Short-wave Infrared Camera Area Scan Cameras MV-GEC30I

Sensor size：1/4" Pixel size：5um Pixels：0.3MP Resolution：640×512 Frame rate：241fps Exposure time：0.007~2150.4ms Sensor model：IMX991 Shutter：Global

Short-wave Infrared Camera Area Scan Cameras MV-GEC500I

Sensor size：1/1.4" Pixel size：3.45um Pixels：5MP Resolution：2592x2056 Frame rate：24fps Exposure time：0.007~2150.4ms Sensor model：IMX992 Shutter：Global

Short-wave Infrared Camera Area Scan Cameras MV-GEL10I

Sensor size：12.8×0.0125mm Pixel size：12.5um Pixels：1024x1 Exposure time：0.005-50ms Color：Mono Line frequency：18K

Short-wave Infrared Camera Area Scan Cameras MV-GEL20I

Sensor size：12.8×0.0125mm Pixel size：12.5um Pixels：2048x1 Color：Mono Line frequency：40K

UV Industrial Camera MV-SUC405U

Sensor size：1.1" Pixel size：5.94um Pixels：4MP Resolution：2048×2048 Frame rate：59.5fps Exposure time：0.0081~500ms Shutter：Rolling Color：Mono

UV Industrial Camera MV-SUC800GU

Sensor size：2/3" Pixel size：2.74um Pixels：8MP Resolution：2840x2840 Frame rate：44.75fps Exposure time：0.0074~124727.5ms Shutter：Global Color：Mono

UV Industrial Camera Special Cameras-MV-GEC405U

Sensor size：1.1" Pixel size：5.94um Pixels：4MP Resolution：2048×2048 Frame rate：27fps Exposure time：0.017~291923.5ms Shutter：Rolling Color：Mono

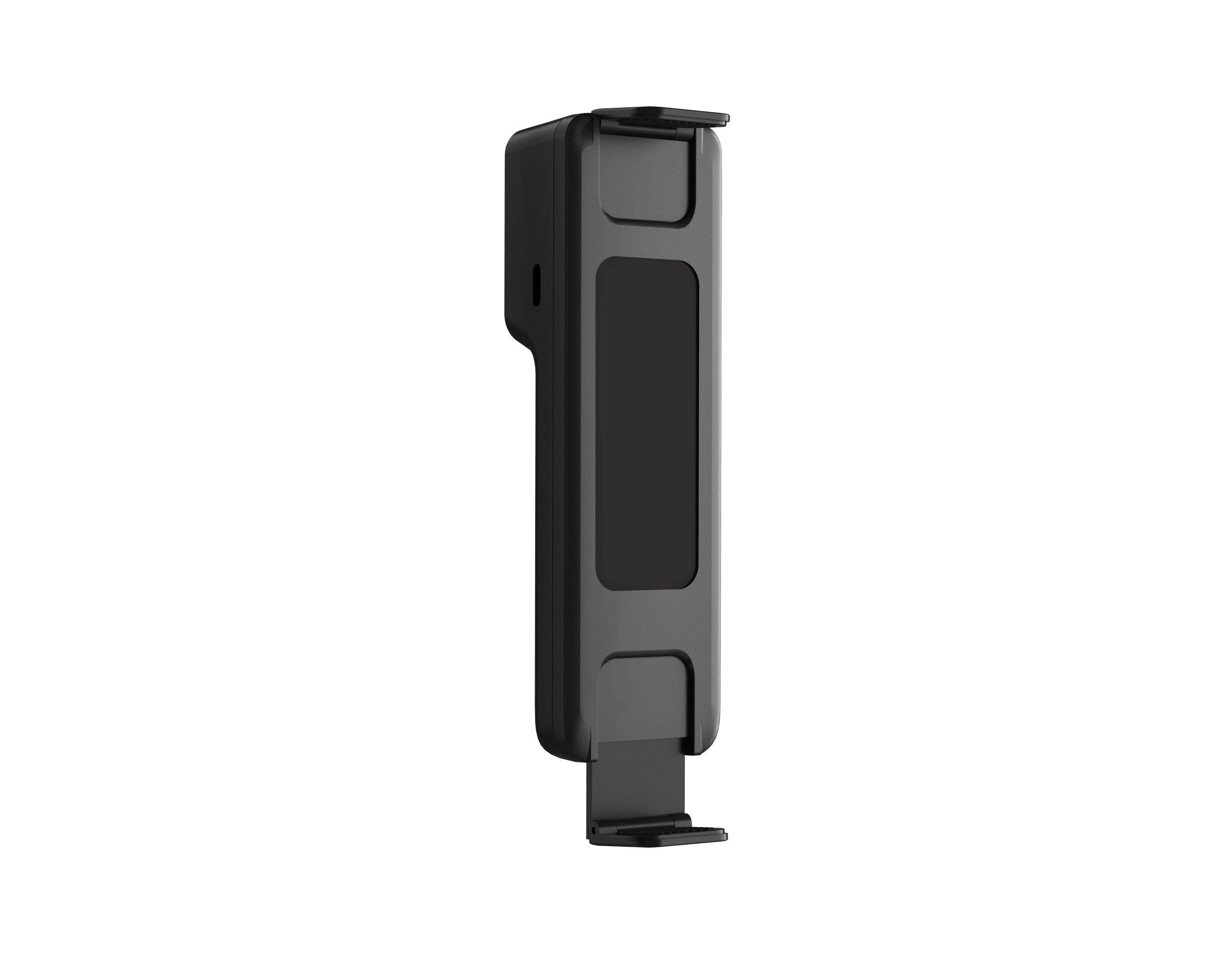

Wireless Thermal Camera MV-IX2 AIR

Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR can be freely combined or separated with a smartphone according to the scenarios. It supports wireless image transmission and operation. With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.

Wireless Thermal Camera MV-IX2 AIR SE

Ask for what can we help
for your business

MindVision, a leading Chinese industrial camera manufacturer founded in 2013, specializes in highprecision imaging innovation. Headquartered in Shenzhen with R&D and production bases in Changsha and Wuxi, its products serve over 50 countries globally.
