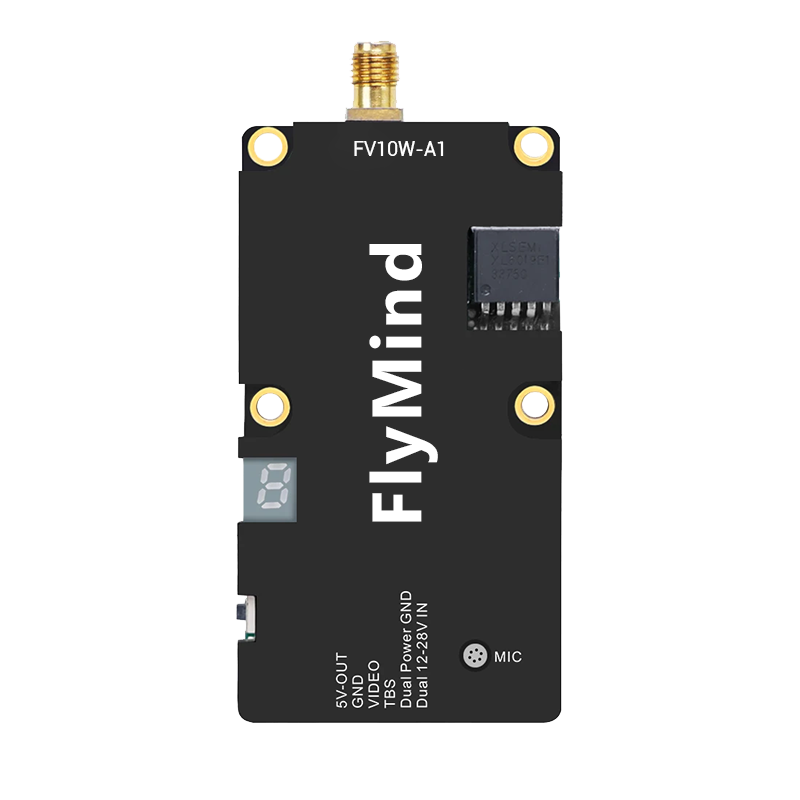

The dual 12 - 28V power input cables and dual ground cables must be pre ciselysoldered to the corresponding pads in strict accordance with the po sitions. Do notsolder only one of the cables to ensure stable power trans mission of the device.
Before powering on, make sure to complete the installation of the antenna connectorand the antenna. Avoid device failures or performance degradat ion caused by non -installation.
The device's heat sink plays a crucial role in heat dissipation. Any removal is strictlyprohibited to prevent device damage due to overheating.
To achieve good heat dissipation effect, please install the Video Transmitt er (VTX) atthe uppermost part of the drone frame. This can ensure suffici ent airflow for heatdissipation.
